Dobinsons Spring & Suspension

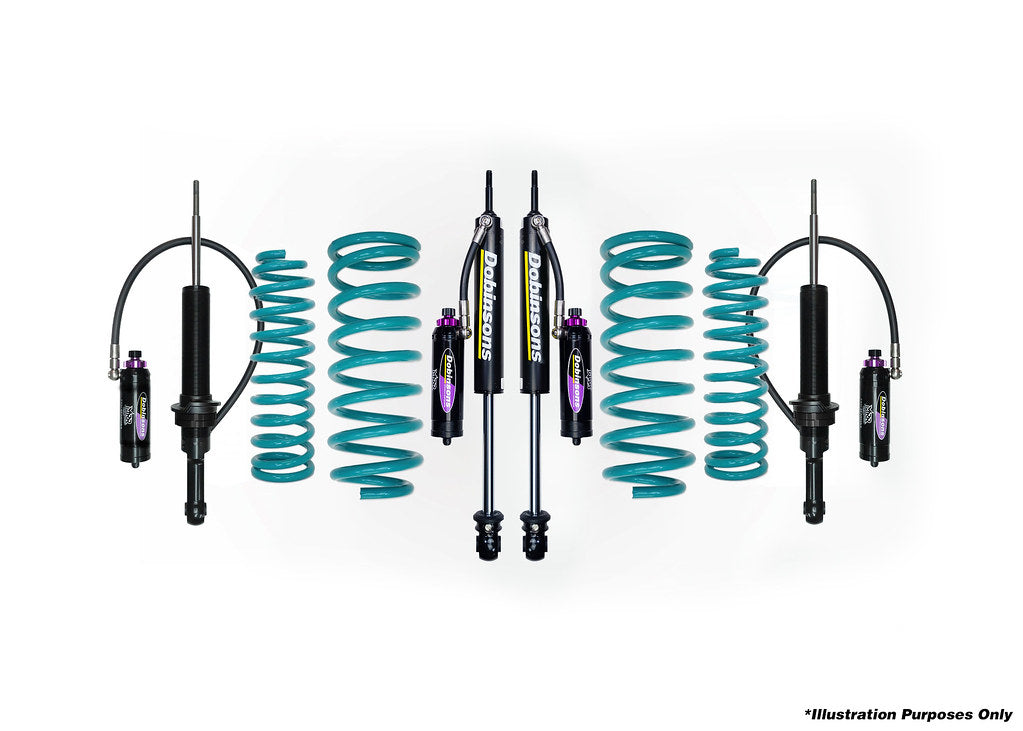

Dobinsons 0-2.5" MRR 3-Way Adjustable Lift Kit Toyota Sequoia UCK35/45 2000-2007 - DSSKITMRA05S

Dobinsons 0-2.5" MRR 3-Way Adjustable Lift Kit Toyota Sequoia UCK35/45 2000-2007 - DSSKITMRA05S

Regular price $3,170.00
Regular price Sale price $3,170.00
Sale Sold out
  • Coil Spring Specs
    • C59-342 Stock Height, Stock Load
    • C59-344 (45mm - 1.75") Stock Load
    • C59-300 (50mm - 2") Stock Load (SC59-001-ISO REQUIRED)
    • C59-302 (60mm - 2.5") Stock Load / (50mm-2") 110-175lb Load (SC59-001-ISO REQUIRED)
  • 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
  • 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
  • 20 Stage Low Speed Compression - For creepy crawling and cornering
  • 15 Stage Rebound - Control your coils, prevent bucking
  • 50mm/60mm CNC Machined High Flow Billet Aluminium Race Piston
  • 2.2"/2.6" Diameter precision honed shock bodies with HD 3mm thick walls
  • Upgraded 3 Stage FKM/HNBR Sealing System
  • TSUGAMITM CNC machined components for precise tolerances
  • ParkerTM Braided High Pressure Hoses
  • 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
  • T6 6061 Height Adjustable Spring Seat
  • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low€�wear performance
  • 60mm Full 6063 aluminum remote reservoir
  • Lightweight CNC Machined Low Friction floating piston
  • High Quality O.E.M. Grade Natural Rubber Bushings
  • Single Piece Lower Leg
  • EDP Surface Protection
  • Direct Bolt-On Design
  • CNC TIG Precision Welded Body End Mounts
  • Fully Rebuildable Design

***Coil seat should be set at 164mm (6.45") from the strut bushing eye.***
