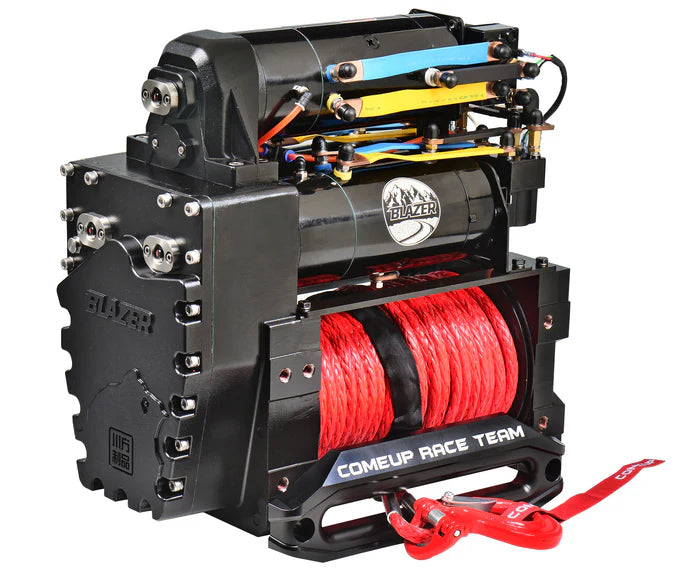

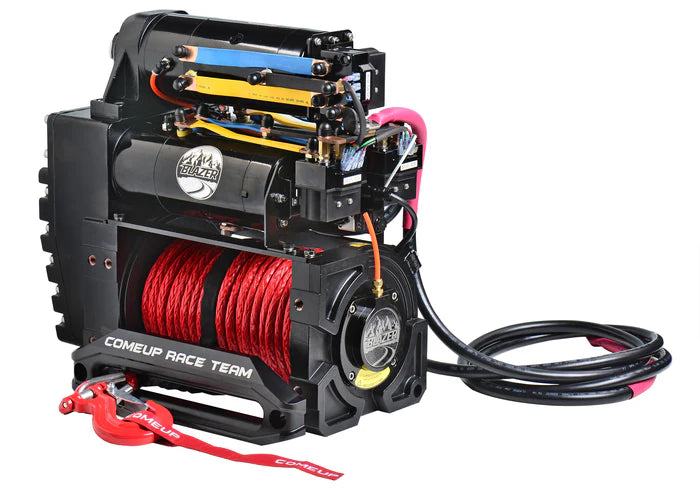

Blazer M3 - 8,000 lbs
Blazer M3 - 8,000 lbs
Regular price
$5,990.00
Regular price
Sale price
$5,990.00
Unit price
/
per
Specifications:
- Triple 8.0 hp 12V series wound motors for the ultimate in power and high speed line pull.
- Three submersible sealed contactors w/silver-alloy contact pads for proven reliability in extreme conditions.

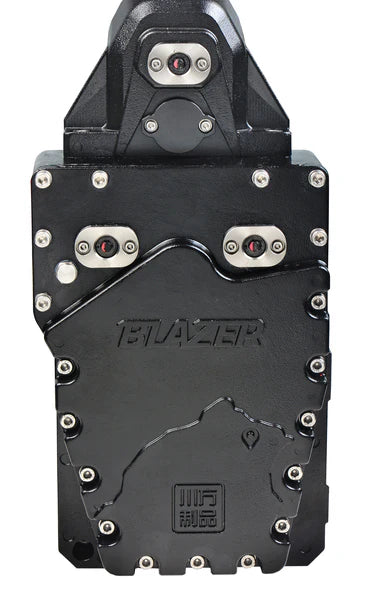

- Rugged 3 stage spur gear train for maximum durability in competition use.
- Dual braking system includes ratchet brake inside the gear box cover and air actuated brakes at each motor.
- Air actuated clutch for driver controlled free spool allowing rapid rope pay-out.
- Can be converted to the 2 motor M2 for various competition conditions.
- Long drum version available to hold up to 60m (197ft) of rope.
- Retrieval speed of up to 73 mpm (239.5 fpm).
- Standard 33.6:1 gear ratio with optional 28:1 and 41.5:1 gear sets available.
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
No load | 63 / 206.7 | 140 |
910 / 2,000 | 18.5 / 60.7 | 480 |
1,810 / 4,000 | 11.8 / 38.7 | 690 |
2,720 / 6,000 | 7.0 / 22.9 | 960 |
3,630 / 8,000 | 5.0 / 16.4 | 1200 |
Line Pull and Rope Capacity:
Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
1st | 3,630 / 8,000 | 5.8 / 19.0 |
2nd | 2,802 / 6,177 | 13.4 / 44.0 |
3rd | 2,282 / 5,031 | 22.7 / 74.5 |
4th | 1,925 / 4,244 | 33.6 / 110.2 |
5th | 1,664 / 3,669 | 46 / 151 |
