Dobinsons Spring & Suspension

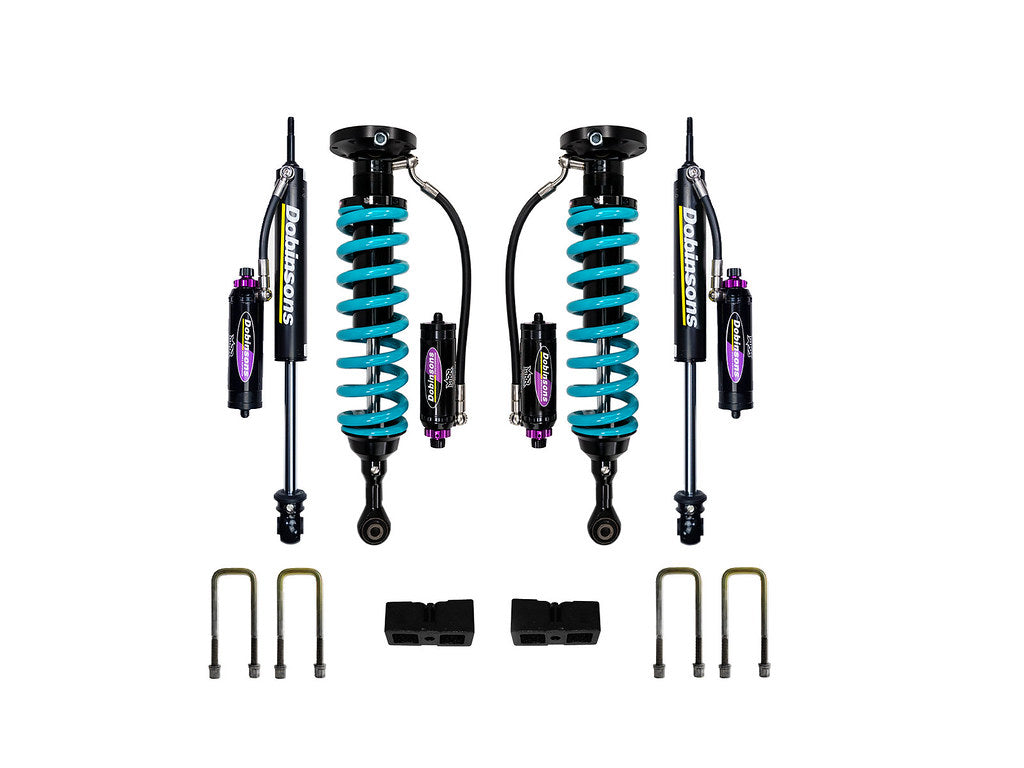

Dobinsons 2.0-3.0" Adjustable Lift Kit for Toyota Tundra
Dobinsons 2.0-3.0" Adjustable Lift Kit for Toyota Tundra
Regular price
$3,575.00
Regular price
Sale price
$3,575.00
Unit price
/
per
Couldn't load pickup availability
Suits Toyota Tundra 2007 to 2021 With Quick Ride Rear
2.0-3.0" MRR 3-Way Adjustable Suspension Kit
Lift Height | Constant Load | Pre-Load Setting |
50mm - 2.0" | 0-85lb Load | 90mm |
50mm - 2.0" | 220-440lb Load | 100mm |
70mm - 2.75" | 220-440lb Load | 110mm |
75mm - 3.0" | 0-85lb Load | 103mm |
75mm - 3.0" | 110-175lb Load | 110mm |
- MRA59-A710 Requirements
- Aftermarket UCAs REQUIRED to clear coil-over
- Aftermarket wheels with +18 Offset or less REQUIRED to avoid reservoir + hose rubbing
- C92-3016650 Specs
- Inner Diameter - 3.0"
- Length - 16"
- Spring Rate - 650lb/in
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression - For creepy crawling and cornering
- 15 Stage Rebound - Control your coils, prevent bucking
- 60mm CNC Machined High Flow Billet Aluminium Race Piston
- 66mm / 2.6" Bodies
- 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM-HNBR Sealing System
- TSUGAMITM CNC machined components for precise tolerances
- ParkerTM Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design
MRA59-A710 Instructions
