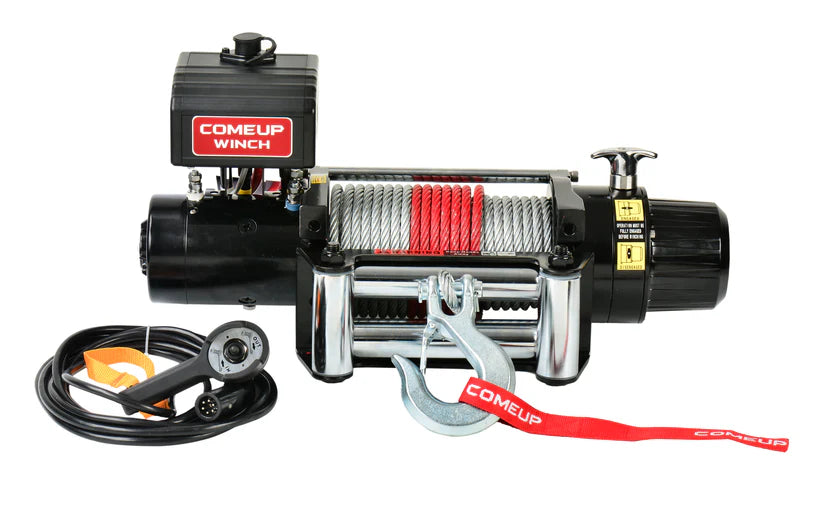

COMEUP WINCH
DV-12 LITE 12V
DV-12 LITE 12V
Regular price
$943.00
Regular price
$1,030.00
Sale price
$943.00
Unit price
/
per
Couldn't load pickup availability
Specifications:
- Rated Line Pull 12,000 lbs (5,443 kg) single line
- Motor 4.6 hp / 3,430 w 12V Series Wound
- Gear Ratio 3-Stage Planetary 211:1
- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum
- Drum Size 2.5” x 9” (63.5 x 227 mm)
- Control Waterproof remote with thermometric indicator LED w/17' (5 m) cord
- Rope Type Galvanized aircraft A7 x 19
- Rope Size 3/8” x 82' (9.5 mm x 25 m)

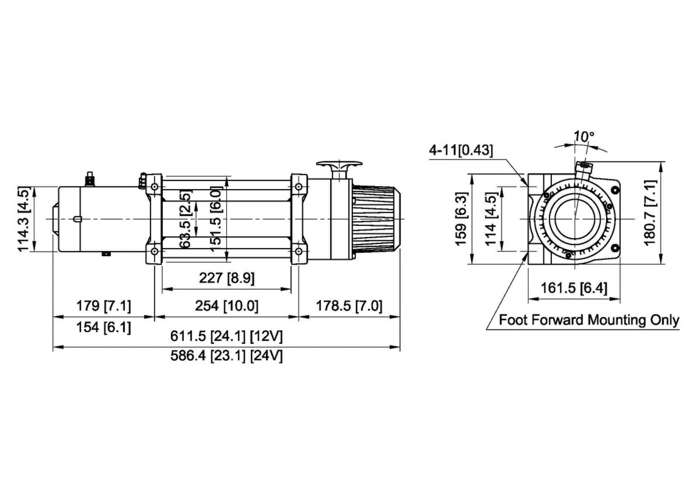

- Mounting Bolt Pattern 10” x 4.5” (254 x 114 mm)
- Winch Weight 86 lbs (39 kg)
- Gross Weight 108 lbs (49 kg)
- Box Dimensions 25.6” x 7.7” x 16.3” (650 x 192 x 415 mm)
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
| Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
| No load | 8.0 / 26.2 | 50 |
| 1,814 / 4,000 | 3.0 / 9.8 | 120 |
| 3,629 / 8,000 | 1.5 / 5.0 | 230 |
| 4,536 / 10,000 | 1.2 / 4.0 | 290 |
| 5,443 / 12,000 | 1.0 / 3.3 | 350 |
Line Pull and Rope Capacity:
| Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
| 1st | 5,443 / 12,000 | 5.4 / 17.7 |
| 2nd | 4,319 / 9,522 | 12.2 / 40.0 |
| 3rd | 3,580 / 7,893 | 20.5 / 67.3 |
| 4th | 3,056 / 6,737 | 25.0 / 82.0 |
