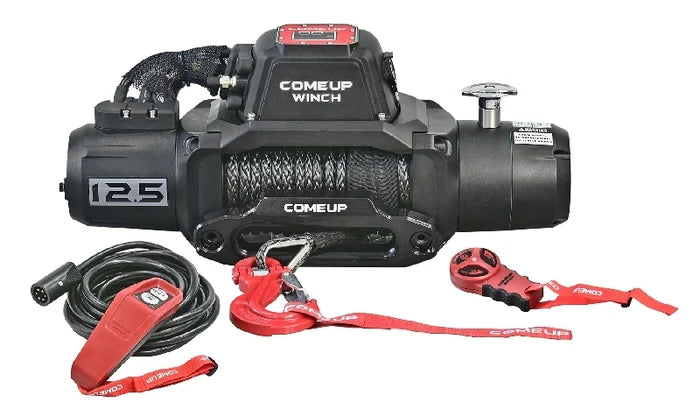

SOLO 12.5rs
SOLO 12.5rs
Regular price
$1,780.00
Regular price
$1,950.00
Sale price
$1,780.00
Unit price
/
per
Specifications
- Rated Line Pull 12,500 lb (5,670 kg) single line
- Motor 5.0 hp / 3,730 w 12V Series Wound
- Gear Ratio 3-Stage Planetary 225:1

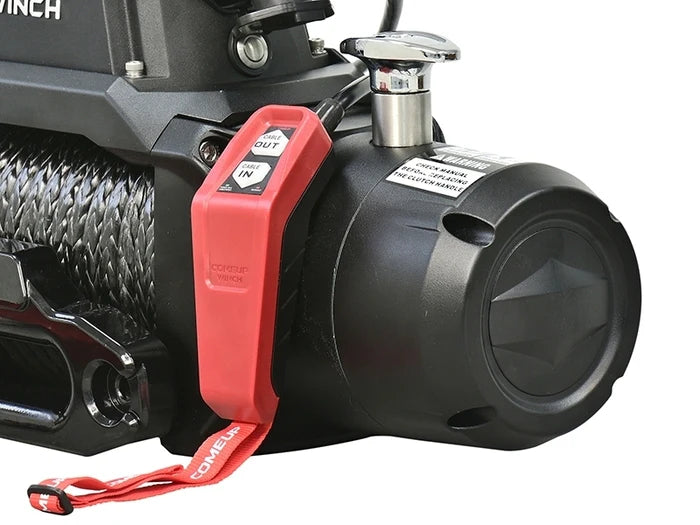

- Clutch (freespooling) Rotating Ring Gear
- Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
- Winch Construction Aluminum Die Cast Housing with Steel Drum
- Drum Size 2.5" x 9" (63.5 x 228 mm)

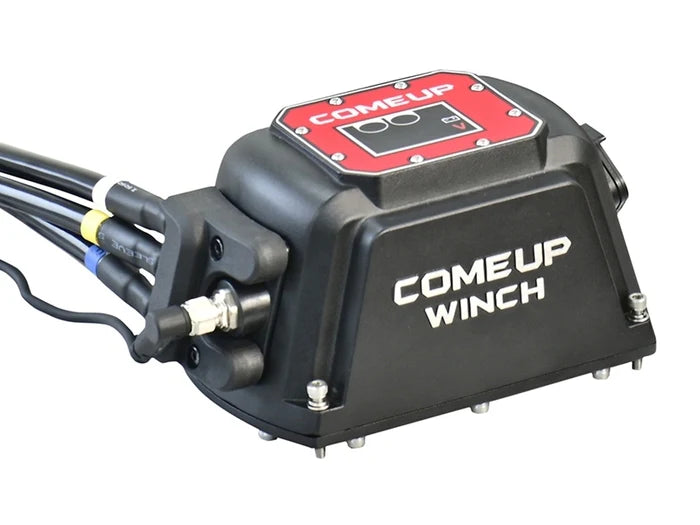

- Control Digital two-way wireless remote control and water-proof wired remote control with thermometric LED indicator
- Rope Type Synthetic Rope
- Rope Size 7/16” x 82’ (11 mm x 25 m)

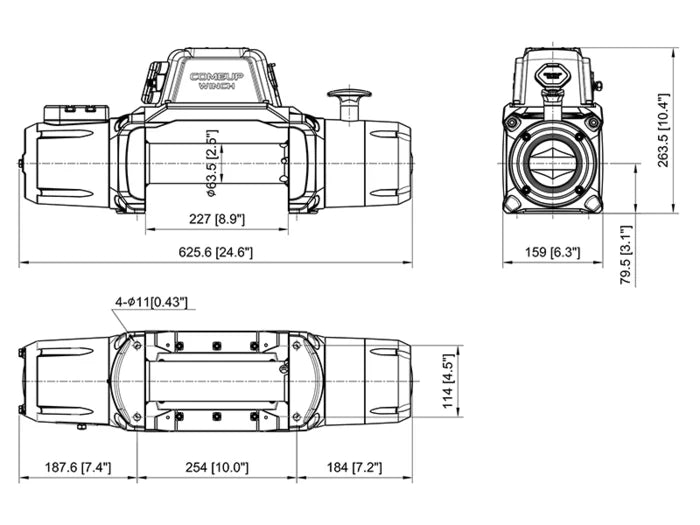

- Mounting Bolt Pattern 10" x 4.5" (254 x 114 mm)
- Winch Weight 79.4 lb
- Gross Weigh 93.9 lbs
- Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm)
Line Speed and Amp. Draw (1st layer of wire rope on the drum):
Line Pull, kg / lb |
Line Speed, mpm / fpm |
Amp. Draw, A |
No load | 7.7 / 25.3 | 45 |
907 / 2,000 | 3.4 / 11.2 | 75 |
1,814 / 4,000 | 2.5 / 8.2 | 160 |
2,722 / 6,000 | 2.0 / 6.6 | 230 |
3,629 / 8,000 | 1.7 / 5.6 | 300 |
5,670 / 12,500 | 0.9 / 3.0 | 470 |
Line Pull and Rope Capacity:
Layer of Rope | Pull by layer, kg / lb | Total Rope on the Drum, m / ft |
1st | 5,670 / 12,500 | 4.8 / 15.7 |
2nd | 4,499 / 9,919 | 10.9 / 35.7 |
3rd | 3,729 / 8,221 | 18.5 / 60.7 |
4th | 3,184 / 7,020 | 25.0 / 82.0 |
